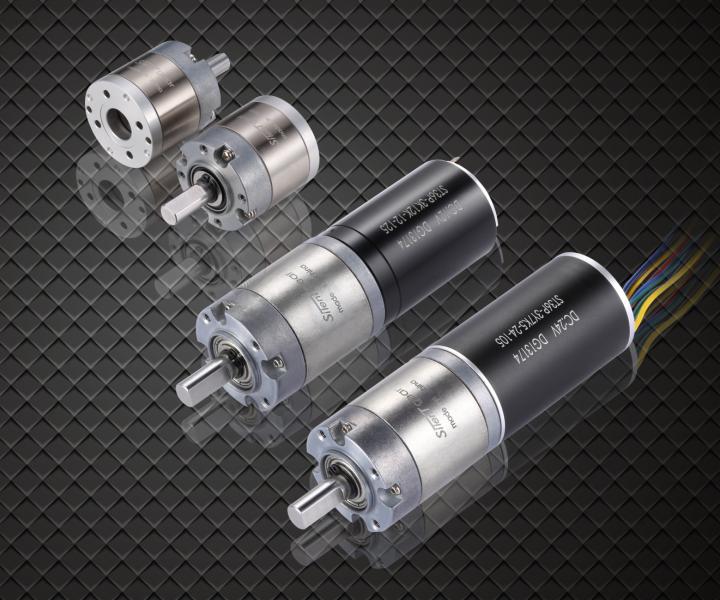

DC planetary geared motor,for OD 36mm series:

Planetary gearboxes have the highest continuous torque capacity of all types of gearbox. At the same time they have a very compact form, low weight, and excellent efficiency. Self-centering planet gears ensure a symmetrical force distribution.

The ring gear also forms the housing of the gearbox. The gearbox output shaft is supported in two ball bearings so that it can withstand high axial and radial loads. The gearboxes are customized, e.g. for use in especially low ambient temperatures, or as high-power gearboxes with reinforced output shafts, or with special lubricants for very long service life.

For high torque, high performance applications, the ideal combination would be the robust Dongguan Silent planetary gearheads combined with micromotors.For applications requiring medium to high torque, Dongguan Silent offers planetary gearheads with high performance metal construction. Planetary gearheads are offered with several shaft bearings including sintered, ceramic, and ball bearings.

The key specifications / special features for ST36P series planetary geared motor:

  • Gearbox OD: 36mm
    Rated voltage:3VDC to 48VDC or customized voltage
    Gearbox length: 29 to 53.8mm
    Reduction ratio: 1:3.6 to 1:1608
    Rated torque: 49 to 4900mN*m
    Rated speed: 2 to 917RPM

Please contact us to get detailed specifications and drawings for the geared motor you're looking for.
We are able to design and produce the geared motor you specified.(OEM & ODM)
